CNC1060 Vertical Machining Center

X-axis stroke: 1000 mm; Y-axis stroke: 600 mm; Z-axis stroke: 600 mm; Distance from spindle end face to work table: 70-670 mm; Work table dimensions: 600*1300 mm.

Key Features

Technical Specifications

Case Study

We believe the projects that we have executed speak for themselves. CITIC HIC has engineered and provided 6 AG mills of Ø12.2m×11m (28000kW gearless drive) and 6 overflow discharge ball mills of Ø7.9×13.6m (2×9000kW gear drive) for Sino Iron Project in Australia. For Zijin Mining’s Duobaoshan Copper Mine project in Heilongjiang, we have manufactured and provided SAG mills of Ø11×6.4m (2×9000kW) and overflow discharge ball mills of Ø7.9×13.6m (2×9000kW) which have been well operating currently.

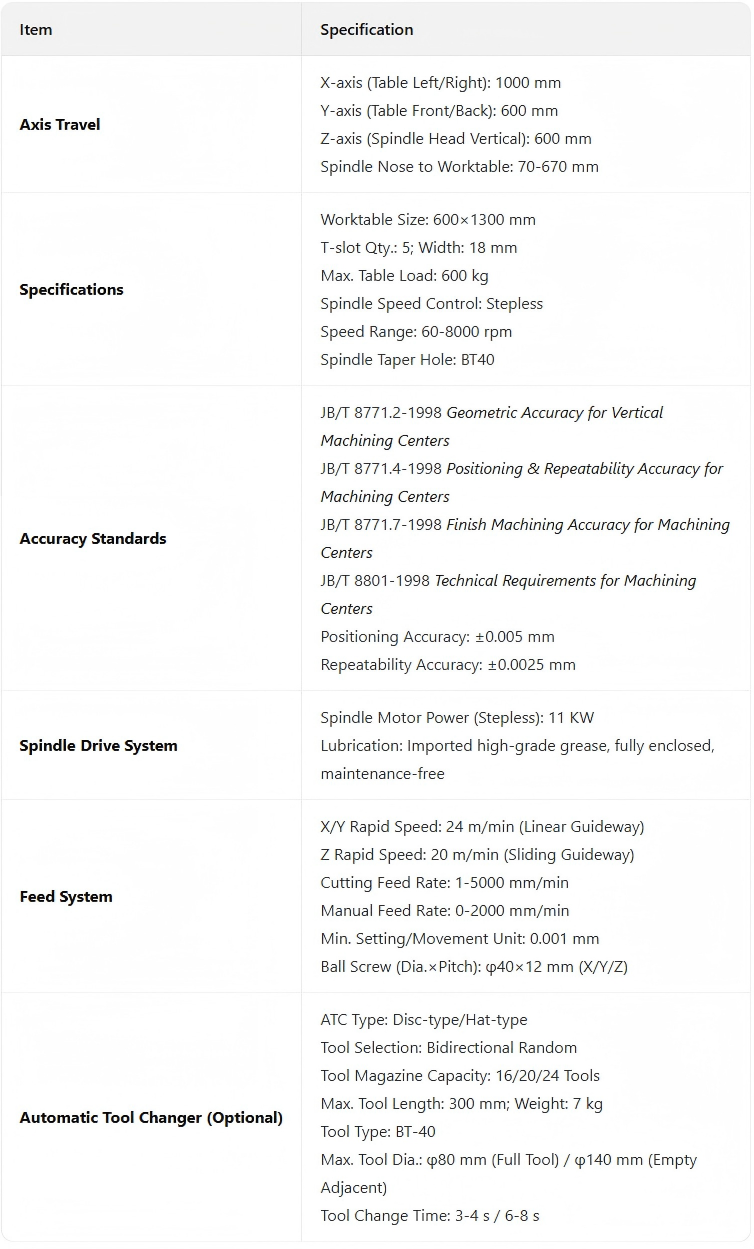

Travel Distances X-axis (table left/right travel): 1000 mmY-axis (table front/back travel): 600 mmZ-axis (spindle head up/down travel): 600 mmDistance from spindle face to table: 70-670 mmSpecifications Table size: 600*1300 mmNumber of T-slots: 5T-slot width: 18 mmMaximum table load: 600 kgSpindle speed control: SteplessSpindle speed range: 60-8000 rpmSpindle taper: BT40Machine Accuracy Standards JB / T 8771.2-1998 《Vertical Machining Centers – Geometric Accuracy Inspection》JB / T8771.4-1998 《Machining Centers – Linear Positioning Accuracy and Repeatability Inspection》JB / T8771.7-1998 《Machining Centers – Finishing Workpiece Accuracy Inspection》JB / T 8801-1998 《Machining Centers – Technical Conditions》Positioning accuracy: ±0.005 mm Repeat positioning accuracy: ±0.0025 mmSpindle Drive System Spindle motor power (stepless speed regulation): 11 kWSpindle lubrication: Using imported high-grade grease, fully enclosed, maintenance-freeFeed System X/Y axis rapid traverse speed: 24 m/min (X/Y axes with linear guides)Z axis rapid traverse speed: 20 m/min (Z axis with sliding guide)Cutting feed rate: 1~5000 mmManual feed rate: 0~2000 mmMinimum setting and movement unit: 0.001 mmBall screw (diameter × pitch): φ40×12 mm (X, Y, Z)Automatic Tool Change (Optional) ATC type: Disk type/Umbrella typeTool selection method: Bi-directional arbitraryTool magazine capacity: 16/20/24 toolsMaximum tool length: 300 mmMaximum tool weight: 7 kgTool type: BT-40Maximum tool diameter: φ80 (full tool state) φ140 (empty adjacent tool state)ATC time: 3-4 s / 6-8 s

Machine StructureThe machine is designed with overall balance in mind, featuring a box structure, wide base, and “human” shaped column design. The main castings (base, column, saddle, spindle box, table) are made of optimized, high-quality, high-tensile resin sand castings with stable structure and minimal deformation, capable of withstanding high tension and loads. Stress relief is achieved through tempering and natural vibration aging to maintain precise movement and positioning. The entire machine undergoes testing and analysis of vibration sources, stress distribution, temperature rise response, and structural deformation to ensure optimal design.The spindle is a high-speed, high-precision 8000 rpm spindle with #40 taper.X and Y axes use renowned Taiwanese linear guides for sensitive movement and higher precision.Z-axis guide sliding surfaces undergo high-frequency hardening and precision grinding, combined with fluorine resin TURCITE-B, ensuring complete lubrication of all contact surfaces for high machining stability.Three-axis ball screws are imported high-precision double-nut type with direct drive and appropriate pre-tensioning design.
Machine ProtectionThe machine is equipped with complete, safe, and reliable protective devices.Complies with GB15760-1995 “General Technical Requirements for Safety Guards of Metal Cutting Machines”.Machine noise: meets national standard ≤75 dB.Electrical cabinet cooling uses a heat exchanger for temperature control, sealed against dust with IP65 protection rating.
Lubrication SystemAutomatic lubrication device provides forced lubrication to all sliding surfaces and ball screws, with adjustable oil injection intervals and quantities.T68# guideway lubricating oil is used.
Cooling SystemCooling system capacity: 200 LCooling pump motor power: 0.5 kW, flow rate: 40 L/minCutting cooling uses universal nozzles for coolant spray.
Pneumatic SystemEquipped with triple air unit, pressure switch, solenoid valve, etc., for pneumatic tool change and spindle air blow. Pressure: 6-8 kgf/cm², flow rate: 220 L/min. Optional external air gun available.
Electrical SystemComplies with GB/T5226.1-1996 “Industrial Machinery Electrical Equipment – Part 1: General Technical Conditions”.The system features complete and reliable interlocking, safety protection, and fault self-diagnosis with alarm function.Equipped with RS232 standard communication interface for program storage using computer floppy disk.Other control systems available upon customer request.
Machine Accessories and Purchased PartsHigh-quality domestic and foreign brands are used for all accessories and purchased parts (see purchased parts list for details).
Three-color Warning LightRed: Alarm indicationYellow: Program end indicationGreen: Program running indication
Machine Power SupplyVoltage range: Three-phase AC 380V ±10%, 50HzTotal power consumption: Maximum 25 kVA
Normal Operating TemperatureAmbient temperature: 0~40℃Humidity: ≤85%
