T600 Drilling and Tapping Center

This machine tool is an excellent equipment for industrial manufacturing. The XYZ axis strokes reach 620/420/330mm, the worktable size is 700*420mm with a maximum load capacity of 250kg, and the positioning accuracy is 0.003mm/300mm. It has a spindle speed of 20000rpm, a rapid traverse speed of 48m/min, and a tool change time of 1.2 seconds. Equipped with the Mitsubishi M80 control system and motors, its key components are from brands such as PMI and FAG. It is compatible with a 3φ380V power supply and suitable for an environment with a temperature of 5-40℃, ensuring efficient and precise machining.

Key Features

Technical Specifications

Case Study

We believe the projects that we have executed speak for themselves. CITIC HIC has engineered and provided 6 AG mills of Ø12.2m×11m (28000kW gearless drive) and 6 overflow discharge ball mills of Ø7.9×13.6m (2×9000kW gear drive) for Sino Iron Project in Australia. For Zijin Mining’s Duobaoshan Copper Mine project in Heilongjiang, we have manufactured and provided SAG mills of Ø11×6.4m (2×9000kW) and overflow discharge ball mills of Ø7.9×13.6m (2×9000kW) which have been well operating currently.

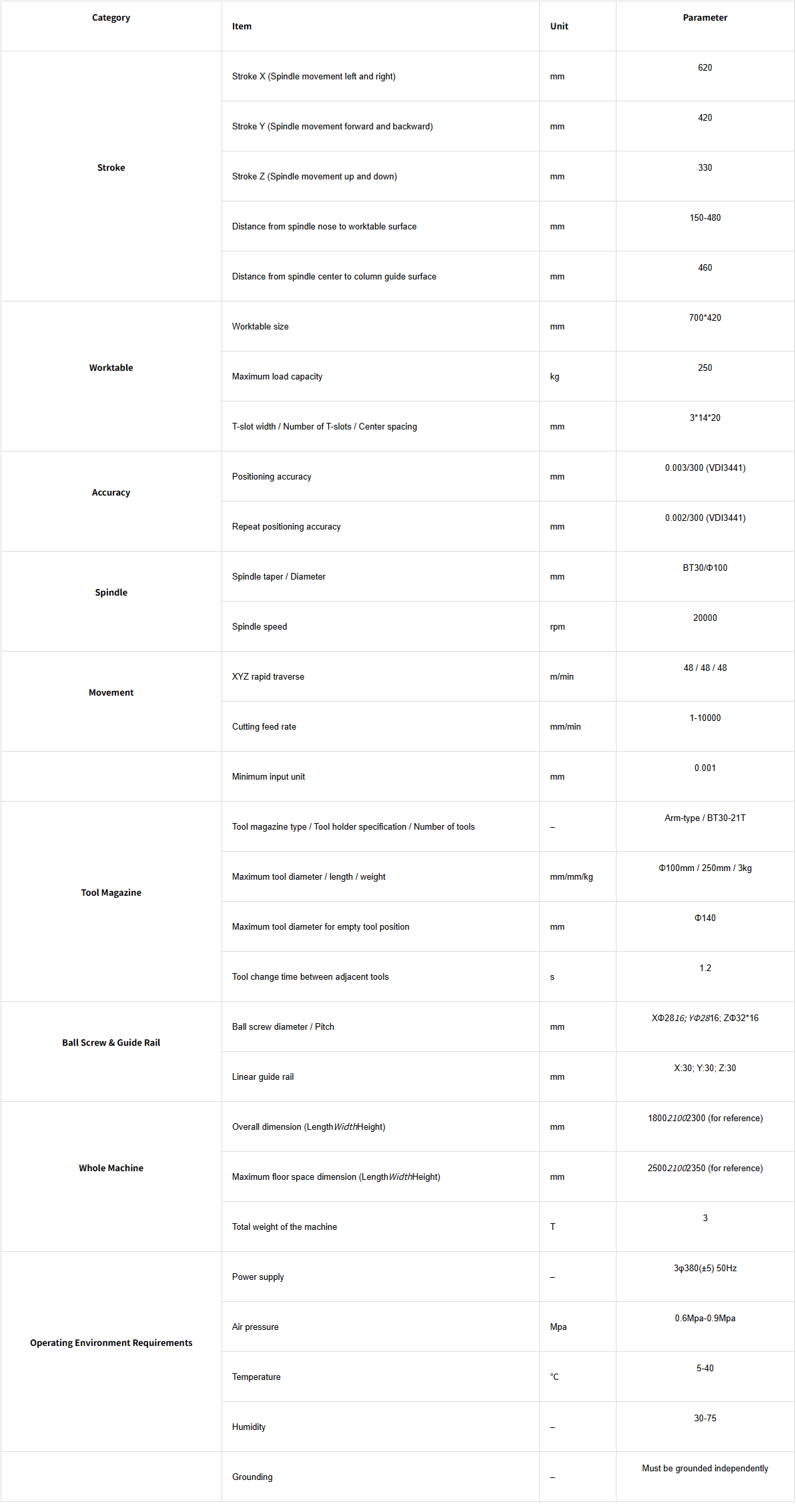

1. Mechanical Parameters

Category	Item	Unit	Parameter
Stroke	Stroke X (Spindle movement left and right)	mm	620
	Stroke Y (Spindle movement forward and backward)	mm	420
	Stroke Z (Spindle movement up and down)	mm	330
	Distance from spindle nose to worktable surface	mm	150-480
	Distance from spindle center to column guide surface	mm	460
Worktable	Worktable size	mm	700*420
	Maximum load capacity	kg	250
	T-slot width / Number of T-slots / Center spacing	mm	31420
Accuracy	Positioning accuracy	mm	0.003/300 (VDI3441)
Accuracy	Repeat positioning accuracy	mm	0.002/300 (VDI3441)
Spindle	Spindle taper / Diameter	mm	BT30/Φ100
Spindle	Spindle speed	rpm	20000
Movement	XYZ rapid traverse	m/min	48 / 48 / 48
Movement	Cutting feed rate	mm/min	1-10000
	Minimum input unit	mm	0.001
Tool Magazine	Tool magazine type / Tool holder specification / Number of tools	–	Arm-type / BT30-21T
	Maximum tool diameter / length / weight	mm/mm/kg	Φ100mm / 250mm / 3kg
	Maximum tool diameter for empty tool position	mm	Φ140
	Tool change time between adjacent tools	s	1.2
Ball Screw & Guide Rail	Ball screw diameter / Pitch	mm	XΦ2816; YΦ2816; ZΦ32*16
Ball Screw & Guide Rail	Linear guide rail	mm	X:30; Y:30; Z:30
Whole Machine	Overall dimension (LengthWidthHeight)	mm	180021002300 (for reference)
	Maximum floor space dimension (LengthWidthHeight)	mm	250021002350 (for reference)
	Total weight of the machine	T	3
Operating Environment Requirements	Power supply	–	3φ380(±5) 50Hz
	Air pressure	Mpa	0.6Mpa-0.9Mpa
	Temperature	℃	5-40
	Humidity	–	30-75
	Grounding	–	Must be grounded independently

Note: Due to continuous technological improvements, technical parameters will be optimized, but it is guaranteed that the machine tool performance will not be affected. Our company reserves the right of final interpretation for specific details.

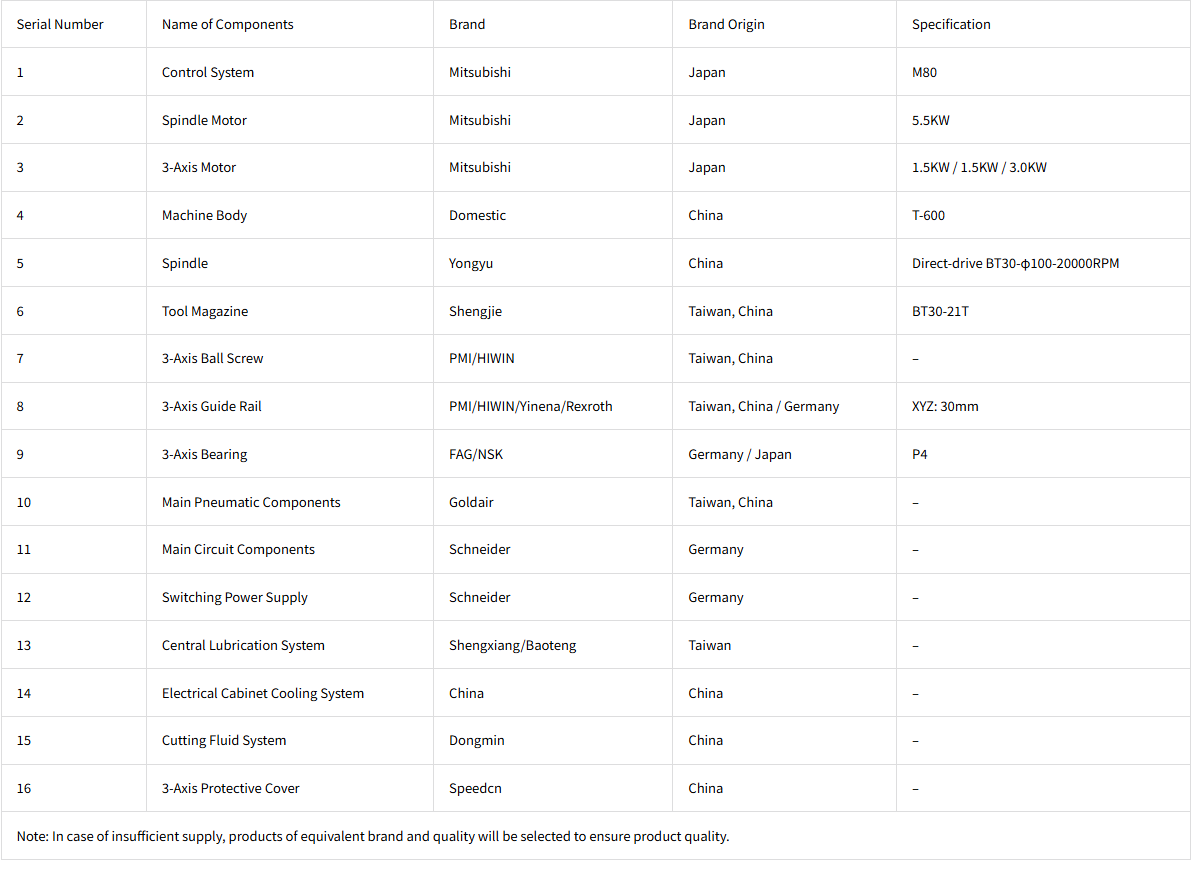

2. Main Components

Serial Number	Name of Components	Brand	Brand Origin	Specification
1	Control System	Mitsubishi	Japan	M80
2	Spindle Motor	Mitsubishi	Japan	5.5KW
3	3-Axis Motor	Mitsubishi	Japan	1.5KW / 1.5KW / 3.0KW
4	Machine Body	Domestic	China	T-600
5	Spindle	Yongyu	China	Direct-drive BT30-φ100-20000RPM
6	Tool Magazine	Shengjie	Taiwan, China	BT30-21T
7	3-Axis Ball Screw	PMI/HIWIN	Taiwan, China	–
8	3-Axis Guide Rail	PMI/HIWIN/Yinena/Rexroth	Taiwan, China / Germany	XYZ: 30mm
9	3-Axis Bearing	FAG/NSK	Germany / Japan	P4
10	Main Pneumatic Components	Goldair	Taiwan, China	–
11	Main Circuit Components	Schneider	Germany	–
12	Switching Power Supply	Schneider	Germany	–
13	Central Lubrication System	Shengxiang/Baoteng	Taiwan	–
14	Electrical Cabinet Cooling System	China	China	–
15	Cutting Fluid System	Dongmin	China	–
16	3-Axis Protective Cover	Speedcn	China	–
Note: In case of insufficient supply, products of equivalent brand and quality will be selected to ensure product quality.

Machine Tool Body Diagram
