T8 Drilling and Tapping Center

Efficient Machining: Equipped with a Yongyu direct-drive BT30 spindle (φ100) with a maximum speed of 20,000rpm, enabling high-speed drilling and tapping operations, suitable for efficient mass production of precision parts.
Stable Machine Body: Adopts HT300 resin sand castings (Model T-8) with aging treatment to effectively reduce operational vibration, ensuring stable machining accuracy.
Precision Transmission: X/Y/Z axes are fitted with PMI/HIWIN/Ina/Rexroth linear guides (Taiwan/Germany) and pre-tensioned ball screws, guaranteeing smooth and precise movement.
Flexible Tool Magazine: Standard with Taiwan Shengjie BT30-21T arm-type tool magazine, featuring a tool change time of only 1.2 seconds between adjacent tools, supporting multi-process continuous machining to enhance production flexibility.
Optional Systems: Control systems can be customized with options such as Mitsubishi M80 (Japan), Fanuc, Mitsubishi, or GSK, tailored to meet diverse production needs.

Key Features

Technical Specifications

Case Study

We believe the projects that we have executed speak for themselves. CITIC HIC has engineered and provided 6 AG mills of Ø12.2m×11m (28000kW gearless drive) and 6 overflow discharge ball mills of Ø7.9×13.6m (2×9000kW gear drive) for Sino Iron Project in Australia. For Zijin Mining’s Duobaoshan Copper Mine project in Heilongjiang, we have manufactured and provided SAG mills of Ø11×6.4m (2×9000kW) and overflow discharge ball mills of Ø7.9×13.6m (2×9000kW) which have been well operating currently.

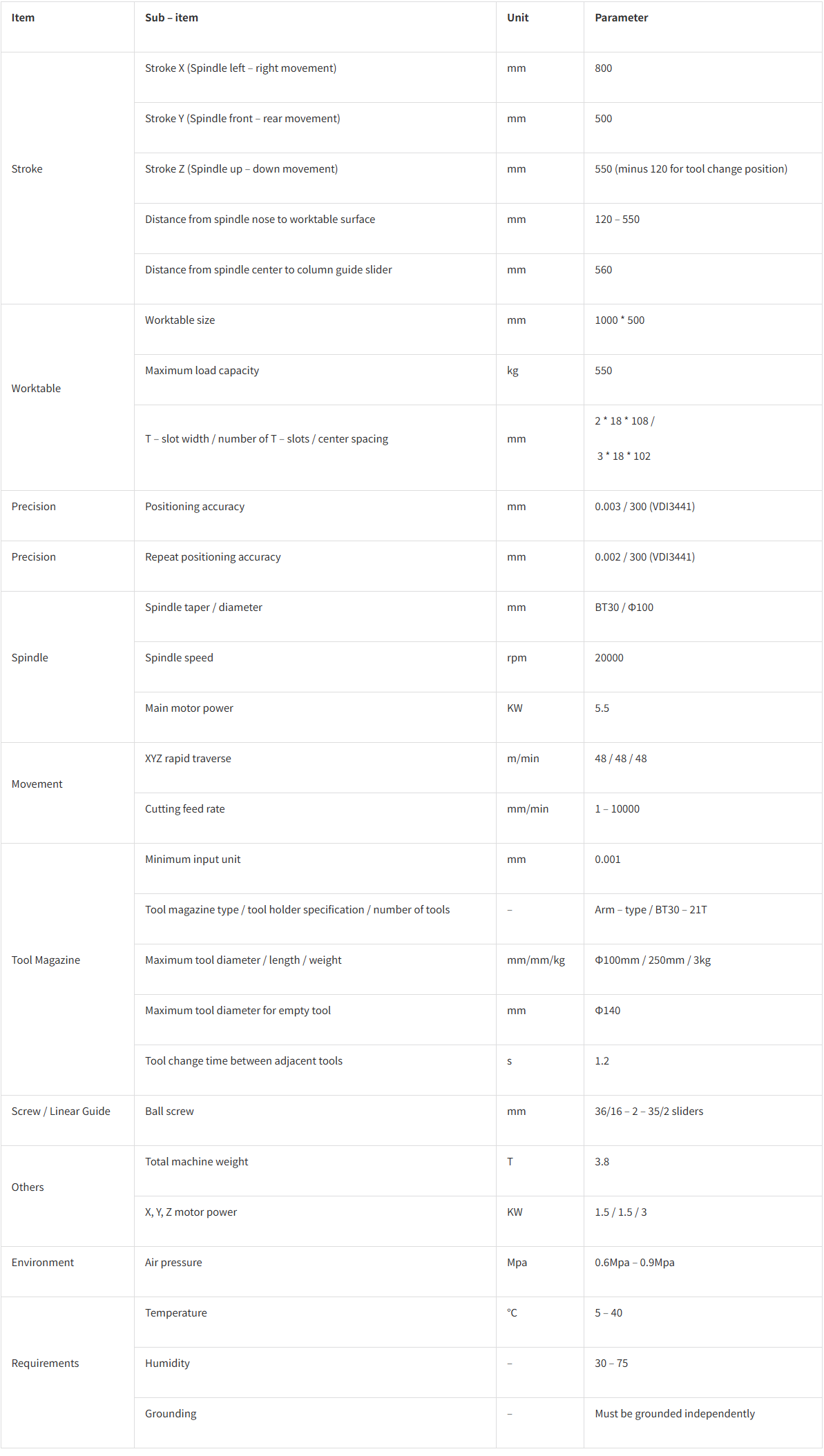

1. Mechanical Parameters

Item	Sub – item	Unit	Parameter
Stroke	Stroke X (Spindle left – right movement)	mm	800
	Stroke Y (Spindle front – rear movement)	mm	500
	Stroke Z (Spindle up – down movement)	mm	550 (minus 120 for tool change position)
	Distance from spindle nose to worktable surface	mm	120 – 550
	Distance from spindle center to column guide slider	mm	560
Worktable	Worktable size	mm	1000 * 500
	Maximum load capacity	kg	550
	T – slot width / number of T – slots / center spacing	mm	2 * 18 * 108 / 3 * 18 * 102
Precision	Positioning accuracy	mm	0.003 / 300 (VDI3441)
Precision	Repeat positioning accuracy	mm	0.002 / 300 (VDI3441)
Spindle	Spindle taper / diameter	mm	BT30 / Φ100
	Spindle speed	rpm	20000
	Main motor power	KW	5.5
Movement	XYZ rapid traverse	m/min	48 / 48 / 48
Movement	Cutting feed rate	mm/min	1 – 10000
Tool Magazine	Minimum input unit	mm	0.001
	Tool magazine type / tool holder specification / number of tools	–	Arm – type / BT30 – 21T
	Maximum tool diameter / length / weight	mm/mm/kg	Φ100mm / 250mm / 3kg
	Maximum tool diameter for empty tool	mm	Φ140
	Tool change time between adjacent tools	s	1.2
Screw / Linear Guide	Ball screw	mm	36/16 – 2 – 35/2 sliders
Others	Total machine weight	T	3.8
Others	X, Y, Z motor power	KW	1.5 / 1.5 / 3
Environment	Air pressure	Mpa	0.6Mpa – 0.9Mpa
Requirements	Temperature	℃	5 – 40
	Humidity	–	30 – 75
	Grounding	–	Must be grounded independently

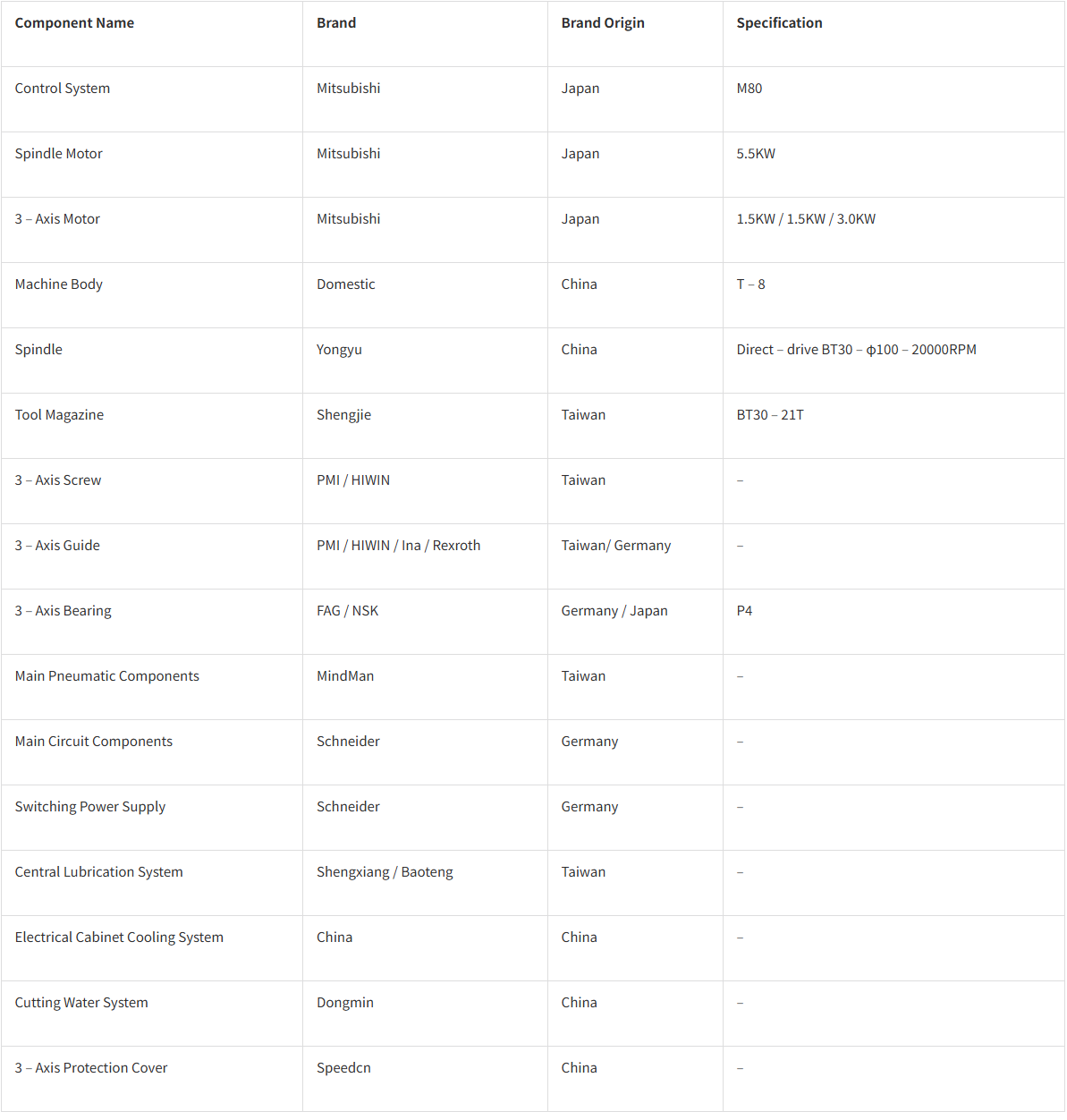

2. Main Components

Component Name	Brand	Brand Origin	Specification
Control System	Mitsubishi	Japan	M80
Spindle Motor	Mitsubishi	Japan	5.5KW
3 – Axis Motor	Mitsubishi	Japan	1.5KW / 1.5KW / 3.0KW
Machine Body	Domestic	China	T – 8
Spindle	Yongyu	China	Direct – drive BT30 – φ100 – 20000RPM
Tool Magazine	Shengjie	Taiwan	BT30 – 21T
3 – Axis Screw	PMI / HIWIN	Taiwan	–
3 – Axis Guide	PMI / HIWIN / Ina / Rexroth	Taiwan/ Germany	–
3 – Axis Bearing	FAG / NSK	Germany / Japan	P4
Main Pneumatic Components	MindMan	Taiwan	–
Main Circuit Components	Schneider	Germany	–
Switching Power Supply	Schneider	Germany	–
Central Lubrication System	Shengxiang / Baoteng	Taiwan	–
Electrical Cabinet Cooling System	China	China	–
Cutting Water System	Dongmin	China	–
3 – Axis Protection Cover	Speedcn	China	–

Note: In case of insufficient supply, products of equivalent brand and quality will be used as substitutes to ensure product quality.

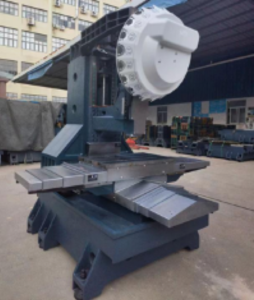

Machine Tool Base Diagram
