CNC1580 Vertical Machining Center

Worktop dimensions: 800×1700mm; X-axis left and right travel: 1500mm; Y-axis front and back travel: 800mm; Z-axis up and down travel: 700mm; Distance from spindle center to column guide rail: 810mm.

Key Features

Technical Specifications

Case Study

We believe the projects that we have executed speak for themselves. CITIC HIC has engineered and provided 6 AG mills of Ø12.2m×11m (28000kW gearless drive) and 6 overflow discharge ball mills of Ø7.9×13.6m (2×9000kW gear drive) for Sino Iron Project in Australia. For Zijin Mining’s Duobaoshan Copper Mine project in Heilongjiang, we have manufactured and provided SAG mills of Ø11×6.4m (2×9000kW) and overflow discharge ball mills of Ø7.9×13.6m (2×9000kW) which have been well operating currently.

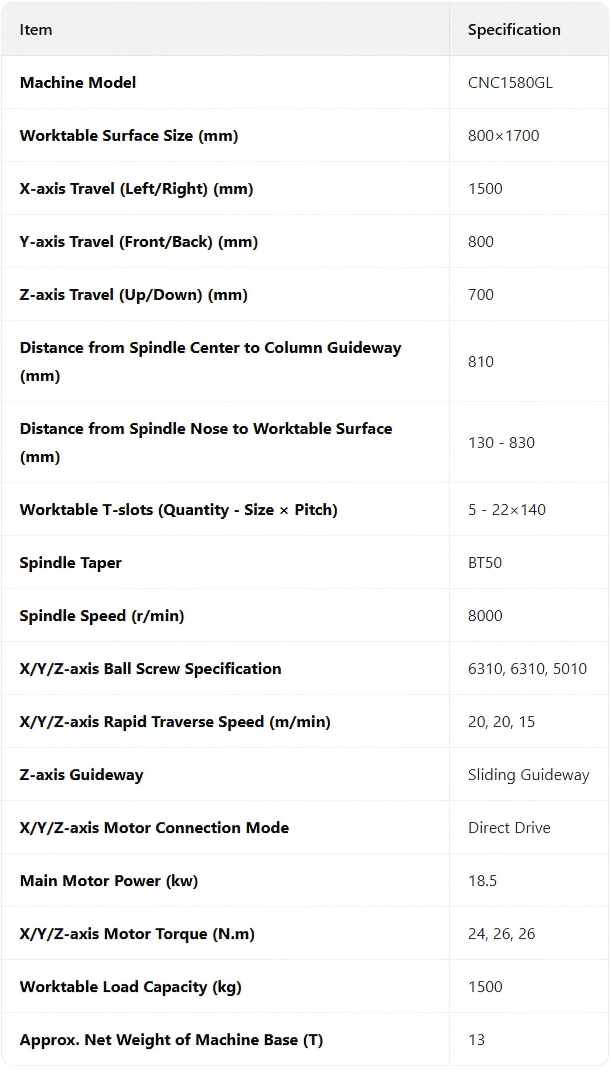

**CNC1580GL Vertical Machining Center Technical Parameters**

**1. Travel Ranges**
X-axis (Left/Right Travel): 1500 mm
Y-axis (Front/Back Travel): 800 mm
Z-axis (Up/Down Travel): 700 mm
Distance from Spindle Center to Column Guideway: 810 mm
Distance from Spindle Nose to Table Surface: 130-830 mm

**2. Specifications**
Table Size: 800 × 1700 mm
T-Slots: 5-22×140 mm (Number-Size×Spacing)
Spindle Taper: BT50
Spindle Speed: 8000 rpm
X, Y, Z Axis Ball Screw Specification: 6310, 6310, 5010
X, Y, Z Axis Rapid Traverse Rate: 20, 20, 15 m/min
Z-axis Guideway: Sliding Guideway
X, Y, Z Axis Motor Connection: Direct Coupling
Main Motor Power: 18.5 kW
X, Y, Z Axis Motor Torque: 24, 26, 26 N.m
Table Load Capacity: 1500 kg
Machine Weight (Approx.): 13 T

**Standard Accessories:**
1. Resin Sand Castings (X/Y Linear Guideways, Z-axis Hard Guideways)
2. Ball Screws (Taiwan HIWIN/ABBA)
3. Spindle (Taiwan PUSEN / LUO YI / DAN CHUAN)
4. Tool Release Cylinder (Taiwan SHANG PIN)
5. Spindle Synchronous Pulley, Synchronous Belt (Taiwan)
6. Bearings (Japan NSK)
7. X, Y, Z Axis Stainless Steel Bellows Covers
8. Mitsubishi M80 Control System
9. Three-axis Mitsubishi Servo Motors
10. Main Electrical Components (Germany Schneider Electric)
11. Air Blow Device for Machining (Taiwan Airtac)
12. Coolant Through Spindle Unit (Taiwan CHANG TIEF)
13. Automatic Lubrication System (Sino-Japanese Joint Venture HEGU)
14. Fully Enclosed Guard
15. Electrical Cabinet Heat Exchanger (EA-05N)
16. Leveling Pads + Screws, Tools, Document Box
17. 1 x LED Long-life Work Light

**Optional Accessories:**
1. Umbrella Type Tool Magazine (Taiwan / OKADA)
2. Disc Type Tool Magazine (Taiwan / OKADA)
3. Chip Conveyor (Domestic)
4. Spindle Oil Chiller
5. Fourth Axis (Taiwan)
