T700 Drilling and Tapping Center

– High-Speed Core: 20,000rpm high-power servo spindle for fast precision drilling, tapping, light cutting (ideal for batch processing).

– Stable Body: HT300 resin sand castings (double aging treatment) for high rigidity, less vibration, stable precision.

– Precision Transmission: X/Y/Z axes with Taiwan 45# heavy-duty linear guides + pre-tensioned ball screws, positioning accuracy ±0.003mm, smooth operation.

– Flexible Tool Magazine: Standard 21-station servo turret (0.8s tool change), multi-tool compatible for continuous multi-process machining.

– Intelligent Config: Standard Mitsubishi system; optional auto-feeder & coolant thermostat for automation.

Key Features

Technical Specifications

Case Study

We believe the projects that we have executed speak for themselves. CITIC HIC has engineered and provided 6 AG mills of Ø12.2m×11m (28000kW gearless drive) and 6 overflow discharge ball mills of Ø7.9×13.6m (2×9000kW gear drive) for Sino Iron Project in Australia. For Zijin Mining’s Duobaoshan Copper Mine project in Heilongjiang, we have manufactured and provided SAG mills of Ø11×6.4m (2×9000kW) and overflow discharge ball mills of Ø7.9×13.6m (2×9000kW) which have been well operating currently.

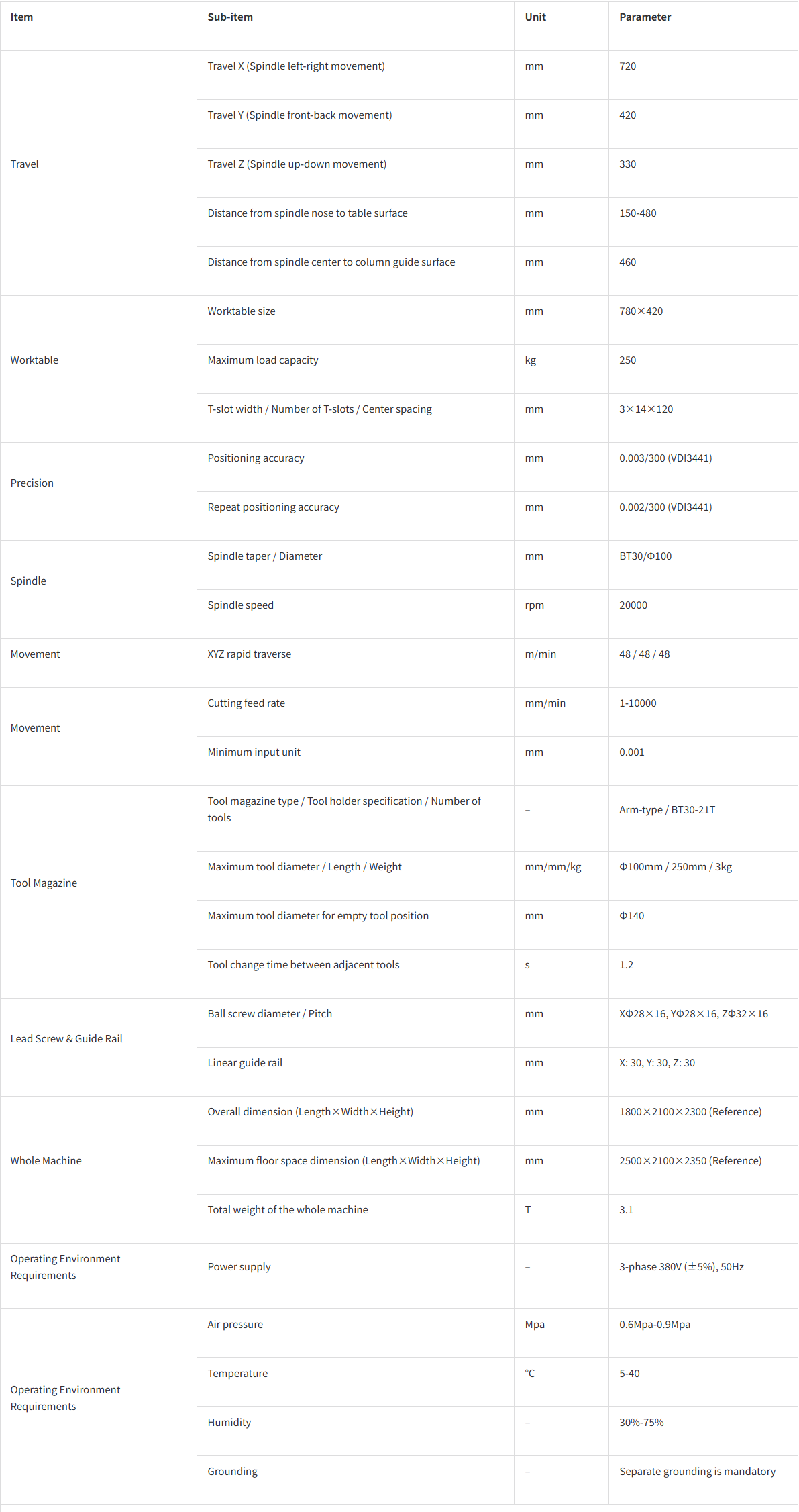

I. Mechanical Parameters

Item	Sub-item	Unit	Parameter
Travel	Travel X (Spindle left-right movement)	mm	720
	Travel Y (Spindle front-back movement)	mm	420
	Travel Z (Spindle up-down movement)	mm	330
	Distance from spindle nose to table surface	mm	150-480
	Distance from spindle center to column guide surface	mm	460
Worktable	Worktable size	mm	780×420
	Maximum load capacity	kg	250
	T-slot width / Number of T-slots / Center spacing	mm	3×14×120
Precision	Positioning accuracy	mm	0.003/300 (VDI3441)
Precision	Repeat positioning accuracy	mm	0.002/300 (VDI3441)
Spindle	Spindle taper / Diameter	mm	BT30/Φ100
Spindle	Spindle speed	rpm	20000
Movement	XYZ rapid traverse	m/min	48 / 48 / 48
Movement	Cutting feed rate	mm/min	1-10000
Movement	Minimum input unit	mm	0.001
Tool Magazine	Tool magazine type / Tool holder specification / Number of tools	–	Arm-type / BT30-21T
	Maximum tool diameter / Length / Weight	mm/mm/kg	Φ100mm / 250mm / 3kg
	Maximum tool diameter for empty tool position	mm	Φ140
	Tool change time between adjacent tools	s	1.2
Lead Screw & Guide Rail	Ball screw diameter / Pitch	mm	XΦ28×16, YΦ28×16, ZΦ32×16
Lead Screw & Guide Rail	Linear guide rail	mm	X: 30, Y: 30, Z: 30
Whole Machine	Overall dimension (Length×Width×Height)	mm	1800×2100×2300 (Reference)
	Maximum floor space dimension (Length×Width×Height)	mm	2500×2100×2350 (Reference)
	Total weight of the whole machine	T	3.1
Operating Environment Requirements	Power supply	–	3-phase 380V (±5%), 50Hz
Operating Environment Requirements	Air pressure	Mpa	0.6Mpa-0.9Mpa
	Temperature	℃	5-40
	Humidity	–	30%-75%
	Grounding	–	Separate grounding is mandatory
Note: Due to continuous technological improvements, technical parameters are subject to optimization without affecting the machine tool performance. Our company reserves the right of final interpretation for specific details.

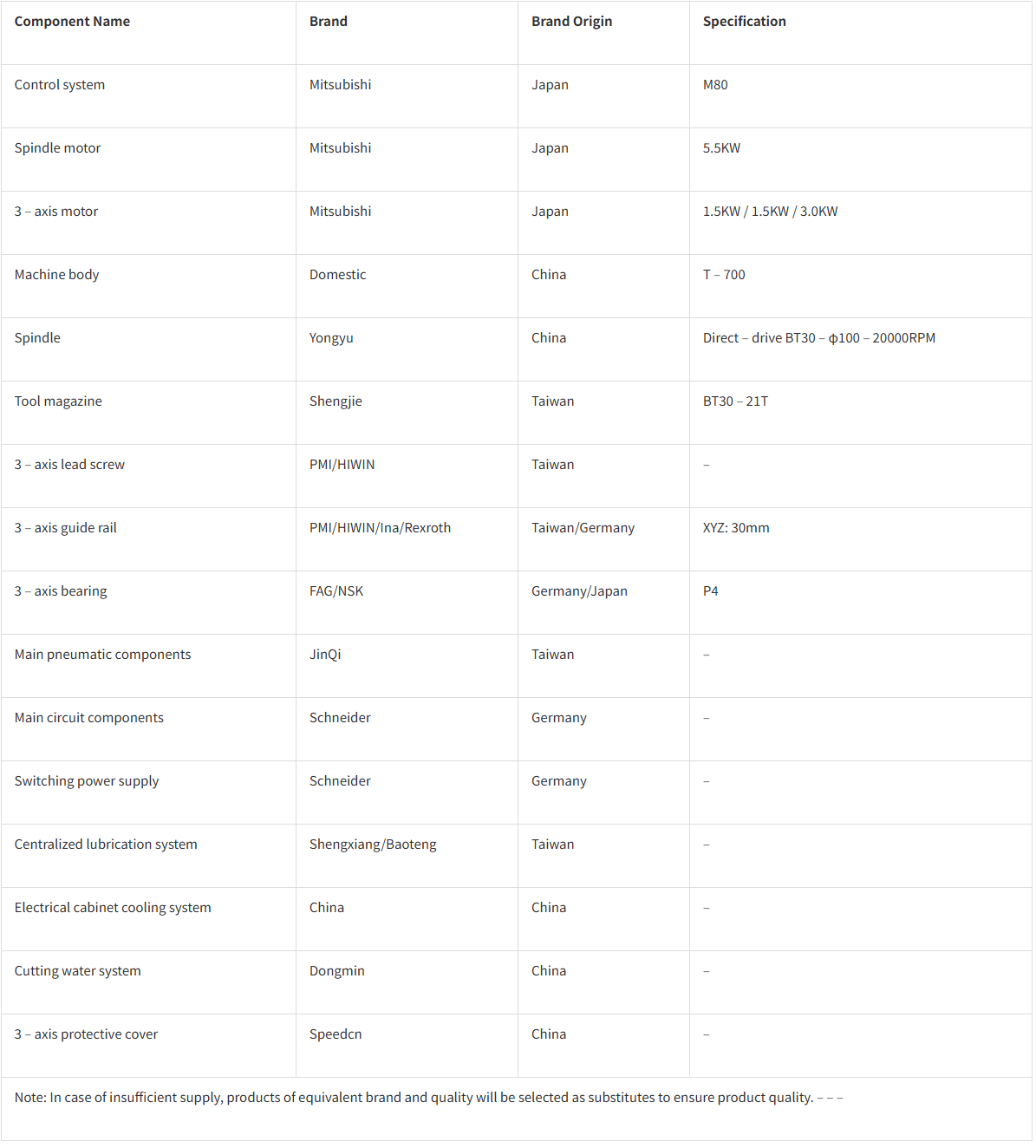

II. Main Components

Component Name	Brand	Brand Origin	Specification
Control system	Mitsubishi	Japan	M80
Spindle motor	Mitsubishi	Japan	5.5KW
3 – axis motor	Mitsubishi	Japan	1.5KW / 1.5KW / 3.0KW
Machine body	Domestic	China	T – 700
Spindle	Yongyu	China	Direct – drive BT30 – φ100 – 20000RPM
Tool magazine	Shengjie	Taiwan	BT30 – 21T
3 – axis lead screw	PMI/HIWIN	Taiwan	–
3 – axis guide rail	PMI/HIWIN/Ina/Rexroth	Taiwan/Germany	XYZ: 30mm
3 – axis bearing	FAG/NSK	Germany/Japan	P4
Main pneumatic components	JinQi	Taiwan	–
Main circuit components	Schneider	Germany	–
Switching power supply	Schneider	Germany	–
Centralized lubrication system	Shengxiang/Baoteng	Taiwan	–
Electrical cabinet cooling system	China	China	–
Cutting water system	Dongmin	China	–
3 – axis protective cover	Speedcn	China	–
Note: In case of insufficient supply, products of equivalent brand and quality will be selected as substitutes to ensure product quality. – – –
