**CNC1890 Vertical Machining Center Technical Parameters** **1. Travel Ranges** X-axis (Table Left/Right Travel): 1800 mm Y-axis (Table Front/Back Travel): 900 mm Z-axis (Spindle Head Up/Down Travel): 680 mm Distance from Spindle Center to Column Guideway: 940 mm Distance from Spindle Nose to Worktable:...

**CNC1580GL Vertical Machining Center Technical Parameters** **1. Travel Ranges** X-axis (Left/Right Travel): 1500 mm Y-axis (Front/Back Travel): 800 mm Z-axis (Up/Down Travel): 700 mm Distance from Spindle Center to Column Guideway: 810 mm Distance from Spindle Nose to Table Surface: 130-830 mm **2....

**CNC1375 Vertical Machining Center Technical Parameters** **1. Travel Ranges** X-axis (Table Left/Right Travel): 1300 mm Y-axis (Table Front/Back Travel): 750 mm Z-axis (Spindle Head Up/Down Travel): 750 mm Distance from Spindle Center to Column Guideway: 835 mm Distance from Spindle Nose to Worktable:...

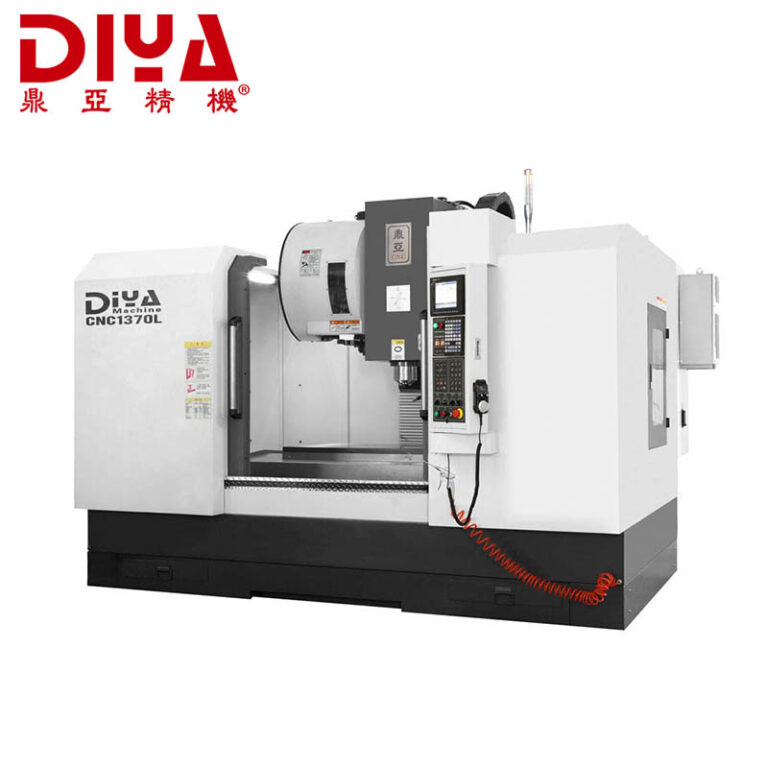

CNC1370 Vertical Machining Center Technical Parameters 1. Travel Distances X-axis (table left/right travel): 1300 mm Y-axis (table front/back travel): 700 mm Z-axis (spindle head up/down travel): 650 mm Distance from spindle center to column guideway: 785 mm Distance from spindle face to table: 150~800...

CNC1270L Vertical Machining Center Technical Parameters 1. Travel Distances X-axis (table left/right travel): 1200 mm Y-axis (table front/back travel): 700 mm Z-axis (spindle head up/down travel): 700 mm Distance from spindle center to column slideway surface: 682 mm Distance from spindle nose to table:...

CNC1160H Vertical Machining Center refers to a three-axis vertical machining center with linear guides on X and Y axes, and box way on Z axis. Machine Model CNC1160H (Two linear guides and one box way) Worktable size (Length × Width) mm 1200*600 Worktable T-slot size (Quantity – Slot width) mm...

CNC1160H Vertical Machining Center refers to a three-axis vertical machining center with linear guides on X and Y axes, and box way on Z axis. Machine Model CNC1160H (Two linear guides and one box way) Worktable size (Length × Width) mm 1200*600 Worktable T-slot size (Quantity – Slot width) mm...

Travel Distances X-axis (table left/right travel): 1000 mmY-axis (table front/back travel): 600 mmZ-axis (spindle head up/down travel): 600 mmDistance from spindle face to table: 70-670 mmSpecifications Table size: 600*1300 mmNumber of T-slots: 5T-slot width: 18 mmMaximum table load: 600 kgSpindle speed...

Machine Model CNC960H (Two linear guides and one box way) Remarks Worktable size (Length X Width) mm 1000*600 Worktable T-slot size (Quantity – Slot width) mm 5-18*125 Maximum worktable load (kg) 700 Worktable left/right (X-axis) travel mm 900 Worktable front/back (Y-axis) travel mm 600 Spindle...

X-axis (table left/right travel): 900 mm;Y-axis (table front/back travel): 600 mm;Z-axis (spindle head up/down travel): 600 mm;Distance from spindle center to column guideway: 675 mm;
