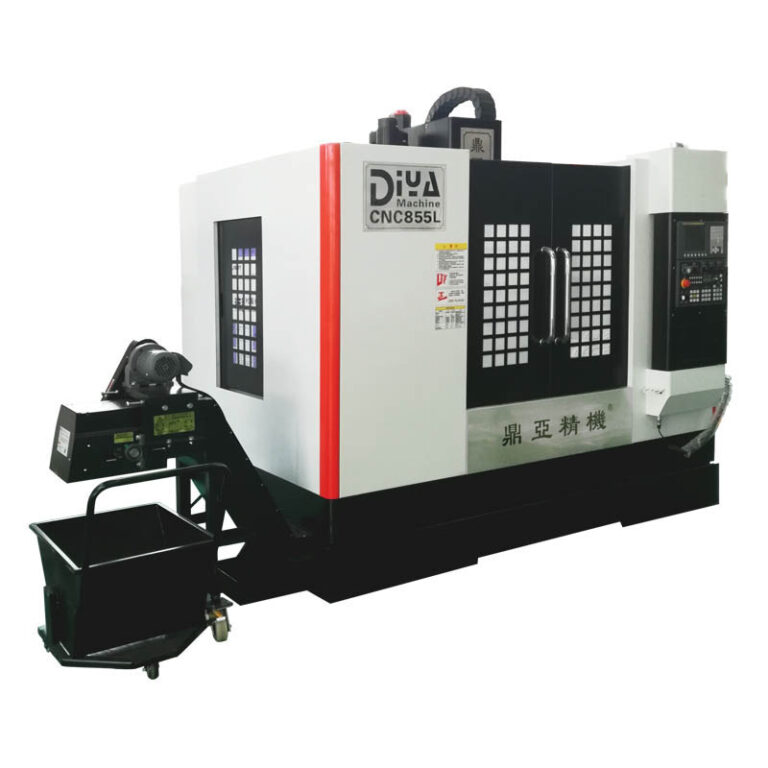

Specification/Model Unit CNC855L Processing Range X-axis travel (left/right) mm 800 Y-axis travel (front/back) mm 550 Z-axis travel (up/down) mm 550 Distance from spindle nose to table surface mm 120-670 Distance from spindle center to column rail surface mm 595 Worktable Specifications Worktable size...

Vibration Damping Performance The excellent vibration damping property of mineral castings enables them to exhibit good machining performance under large dynamic loads. It can reduce abnormal impacts between tools and workpieces, and improve the service life of tools. It can enhance the machining quality...

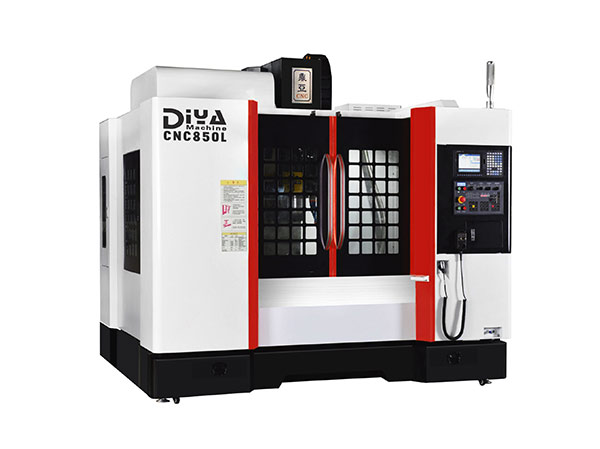

CNC850 Vertical Machining Center Technical Parameters 1. Travel Distances X-axis (table left/right): 800 mm Y-axis (table front/back): 500 mm Z-axis (spindle head up/down): 530 mm Distance from spindle center to column guide: 550 mm Distance from spindle nose to table: 126-656 mm 2. Specifications Table...
