1. Mechanical Parameters Item Sub – item Unit Parameter Stroke Stroke X (Spindle left – right movement) mm 800 Stroke Y (Spindle front – rear movement) mm 500 Stroke Z (Spindle up – down movement) mm 550 (minus 120 for tool change position) Distance...

I. Mechanical Parameters Item Sub-item Unit Parameter Travel Travel X (Spindle left-right movement) mm 720 Travel Y (Spindle front-back movement) mm 420 Travel Z (Spindle up-down movement) mm 330 Distance from spindle nose to table surface mm 150-480 Distance...

1. Mechanical Parameters Category Item Unit Parameter Stroke Stroke X (Spindle movement left and right) mm 620 Stroke Y (Spindle movement forward and backward) mm 420 Stroke Z (Spindle movement up and down) mm 330 Distance from spindle nose to worktable surface mm 150-480 Distance...

Since its establishment in 2003, “Dingya Precision Machinery” has consistently adhered to the philosophy of “being based on professionalism, driven by innovation, and supported by service.” The company specializes in the research and development of machining centers, turning-milling...

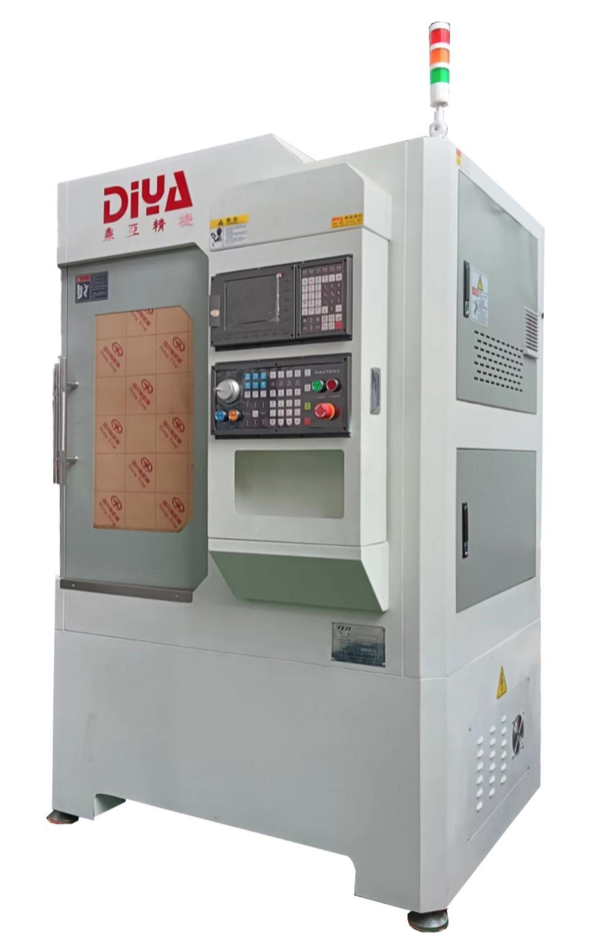

1. Mechanical Parameters Item DY550 (Mechanical Spindle) Worktable Worktable Size (W×L)mm 500×400 mm Maximum Load Capacity 200 kg Spindle Maximum Spindle Speed 5000 rpm Spindle Power 1.5 KW (2.6 KW optional) Spindle Taper Hole BT30 Distance from Worktable Surface to Spindle End Face Minimum...

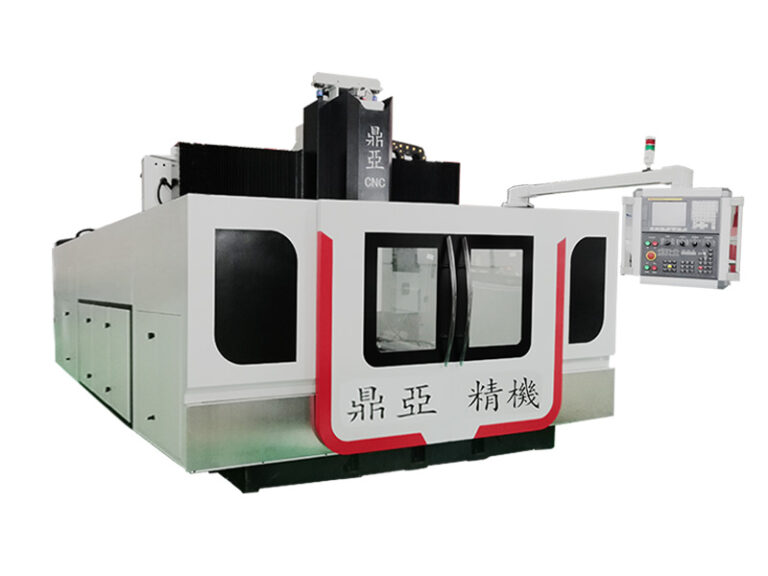

DYX2013 Moving Beam Dual-Drive Gantry Machining Center Technical Description I. Machine Characteristics The DYX2013 moving beam, dual-drive CNC gantry milling machine features a fixed table and a moving gantry utilizing dual-drive technology, offering large load capacity and a small footprint. The...

**DY1610 Moving Beam Dual-Drive Gantry Machining Center Technical Description** **I. Machine Characteristics** 1. The DY1610 moving beam, dual-drive CNC gantry milling machine features a fixed table and a moving gantry utilizing dual-drive technology, offering large load capacity and a small footprint. 2....

**CNC1890 Vertical Machining Center Technical Parameters** **1. Travel Ranges** X-axis (Table Left/Right Travel): 1800 mm Y-axis (Table Front/Back Travel): 900 mm Z-axis (Spindle Head Up/Down Travel): 680 mm Distance from Spindle Center to Column Guideway: 940 mm Distance from Spindle Nose to Worktable:...

**CNC1580GL Vertical Machining Center Technical Parameters** **1. Travel Ranges** X-axis (Left/Right Travel): 1500 mm Y-axis (Front/Back Travel): 800 mm Z-axis (Up/Down Travel): 700 mm Distance from Spindle Center to Column Guideway: 810 mm Distance from Spindle Nose to Table Surface: 130-830 mm **2....

**CNC1375 Vertical Machining Center Technical Parameters** **1. Travel Ranges** X-axis (Table Left/Right Travel): 1300 mm Y-axis (Table Front/Back Travel): 750 mm Z-axis (Spindle Head Up/Down Travel): 750 mm Distance from Spindle Center to Column Guideway: 835 mm Distance from Spindle Nose to Worktable:...
